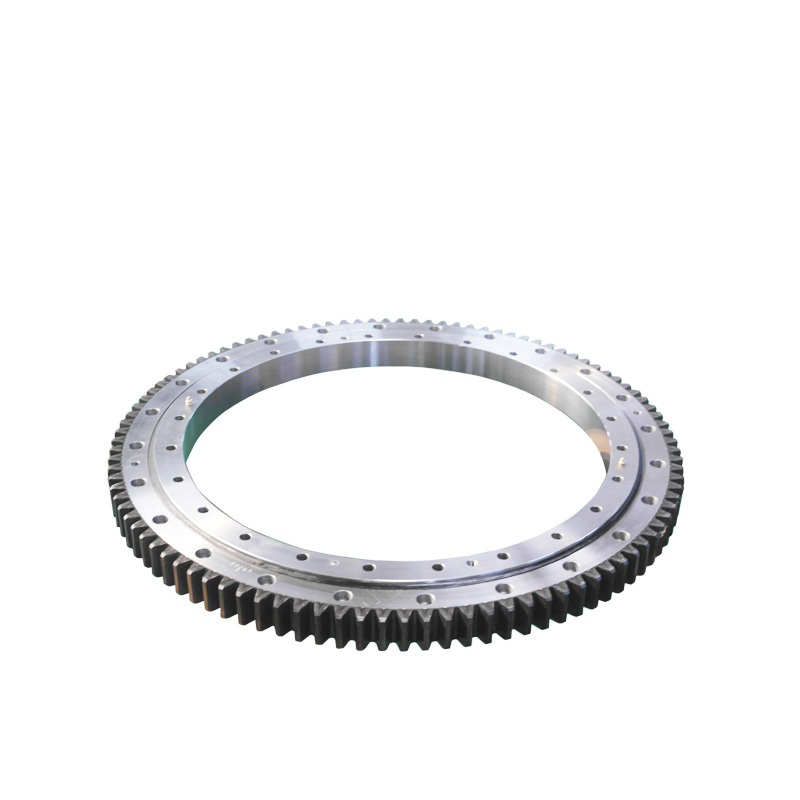

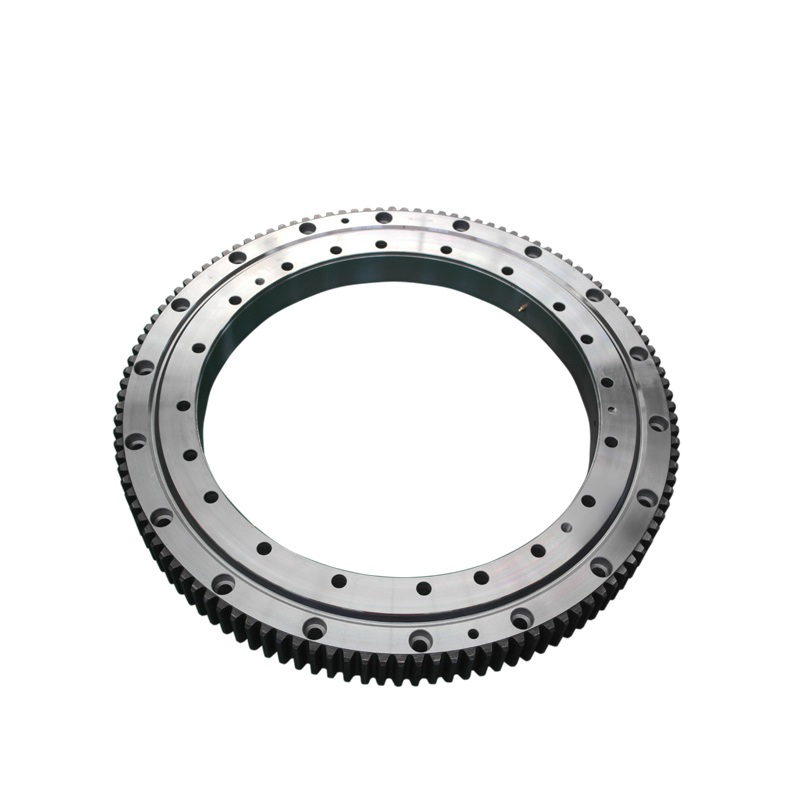

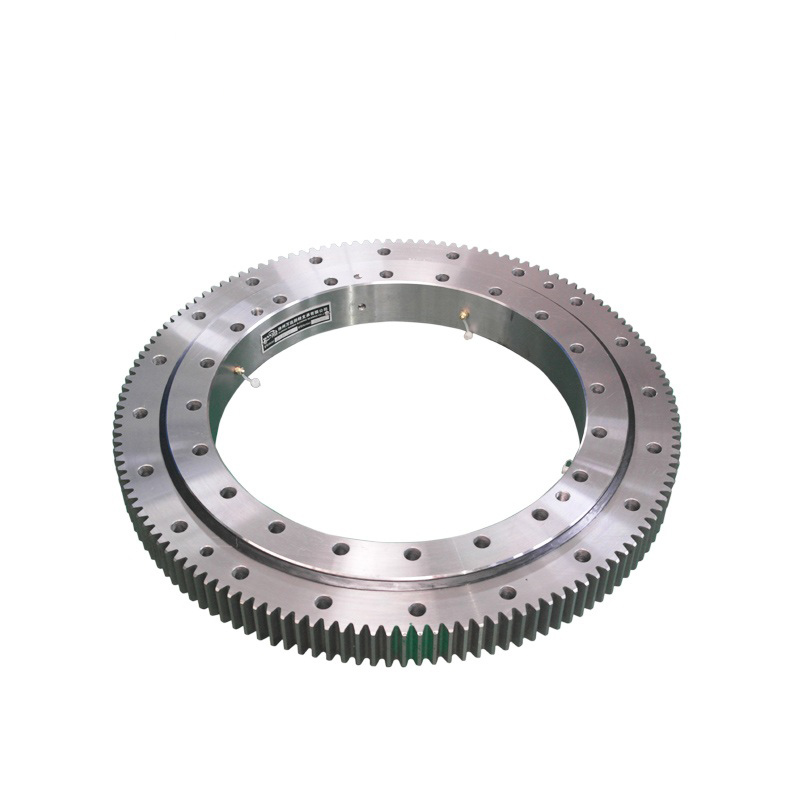

XZWD OEM single row ball slewing bearing Rotary Bearing Ball for Crane

Short Description:

Slewing ring Co.,Ltd. is a professional manufacturer and exporter of slewing bearing,slewing drives.XUZHOU WANDA SLEWING RING CO.,LTD. is the leading manufacturer of slewing bearings (200~4500MM).Single row four point contact ball slewing bearing is widely used in truck crane. It can handle the loading and unloading of goods in a more comprehensive manner. Compared with other steering equipment, the advantage of slewing bearing is the key to solve inaccurately place and load and unload of g…

  • FOB QINGDAO ,TIANJING ,SHANGHAI SEA PORT CHINA : US $400-1000/ Ton
  • Min.Order Quantity: 1ton
  • Supply Ability: 2000ton per Month
  • Payment term : LC,TT

  • Product Detail

    Product Tags

    Slewing ring Co.,Ltd. is a professional manufacturer and exporter of slewing bearing,slewing drives.

    XUZHOU WANDA SLEWING RING CO.,LTD. is the leading manufacturer of slewing bearings (200~4500MM).

    Single row four point contact ball slewing bearing is widely used in truck crane. It can handle the loading and unloading of goods in a more comprehensive manner. Compared with other steering equipment, the advantage of slewing bearing is the key to solve inaccurately place and load and unload of goods.

    Technical parameters required for slewing bearing selection as below:
    1).Slewing bearing load (Includes axial load, radial load and tilting moment)
    2). Percentage of each load and its occupation time
    3). Speed or number of revolutions of the slewing bearing under each load
    4).Circumferential force acting on the gear
    5).Dimensions of the slewing bearing
    6). Other operating conditions

    The material, compressive property, abrasive resistance and hardness of balls will affect the load condition and service life of slewing bearing. slewing bearing Co., Ltd purchase balls from suppliers with high quality, and we will conduct test for the compressive property, abrasive resistance and hardness to ensure the quality of balls will meet the requirement.

    You can see our catalogue in the the below table :

    No External gear Dimensions (mm) Mounting Dimensions (mm) Structural Dimension (mm) Gear data Gear force10^4 KN weight
    kg
    D d H D1 D2 n Φ dm L n1 D3 d1 H1 h b x M De z N T
    1 011.20.200 280 120 60 248 152 12 16 M14 28 2 201 199 50 10 40 0 3 300 98 1.5 2.1 24
    2 011.20.224 304 144 60 272 176 12 16 M14 28 2 225 223 50 10 40 0 3 321 105 1.5 2.1 25
    3 011.20.250 330 170 60 298 202 18 16 M14 28 2 251 249 50 10 40 0 4 352 86 2.1 2.8 30
    4 011.20.280 360 200 60 328 232 18 16 M14 28 2 281 279 50 10 40 0 4 384 94 1.5 2.8 34
    5 011.25.315 408 222 70 372 258 20 18 M16 32 2 316 314 60 10 50 0 5 435 85 2.9 4.4 52
    6 011.25.355 448 262 70 412 298 20 18 M16 32 2 356 354 60 10 50 0 5 475 93 2.9 4.4 59
    7 011.25.400 493 307 70 457 343 20 18 M16 32 2 401 399 60 10 50 0 6 528 86 3.5 5.3 69
    8 011.25.450 543 357 70 507 393 20 18 M16 32 2 451 449 60 10 50 0 6 576 94 3.5 5.3 76
    9 011.30.500 602 398 80 566 434 20 18 M16 32 4 501 499 498 70 10 60 0.5 5 629 123 3.7 5.2 85
    012.30.500 6 628.8 102 4.5 6.2
    10 011.30.560 662 458 80 626 494 20 18 M16 32 4 561 559 558 70 10 60 0.5 5 689 135 3.7 5.2 95
    012.25/30.560 6 688.8 112 4.5 6.2
    11 011.30.630 732 528 80 696 564 24 18 M16 32 4 631 629 628 70 10 60 0.5 6 772.8 126 4.5 6.2 110
    012.25/30.630 8 774.4 94 6 8.3/8.2
    12 011.30.710 812 608 80 776 644 24 18 M16 32 4 711 709 708 70 10 60 0.5 6 850.8 139 4.5 6.2 120
    012.30.710 8 854.4 104 6 8.9/8.3
    13 011.40.800 922 678 100 878 722 30 22 M20 40 6 801 798 90 10 80 0.5 8 966.4 118 8 11.1 220
    012.40.800 10 968 94 10 14.1/14
    14 011.40.900 1022 778 100 978 822 30 22 M20 40 6 901 898 90 10 80 0.5 8 1062.4 130 8 11.1 240
    012.40.900 10 1068 104 10 14
    15 011.40.1000 1122 878 100 1078 922 36 22 M20 40 6 1001 998 90 10 80 0.5 10 1188 116 10 14 270
    012.30/40.1000 12 1185.6 96 12 16.7
    16 011.40.1120 1242 998 100 1198 1042 36 22 M20 40 6 1121 1118 90 10 80 0.5 10 1298 127 10 14 300
    012.30/40.1120 12 1305.6 106 12 16.7
    17 011.45.1250 1390 1110 110 1337 1163 40 26 M24 48 5 1252 1248 100 10 90 0.5 12 1449.6 118 13.5 18.8 420
    012.35/45.1250 14 1453.2 101 15.8 21.9
    18 011.45.1400 1540 1260 110 1487 1313 40 26 M24 48 5 1402 1398 100 10 90 0.5 12 1605.6 131 13.5 18.8 480
    012.35/45.1400 14 1607.2 112 15.5 21.9
    19 011.45.1600 1740 1460 110 1687 1513 45 26 M24 48 5 1602 1598 100 10 90 0.5 14 1817.2 127 15.8 21.9 550
    012.35/45.1600 16 1820.8 111 18.1 25
    20 011.45.1800 1940 1660 110 1887 1713 45 26 M24 48 5 1801
    1802
    1798 100 10 90 0.5 14 2013.2 141 15.8 21.9 610
    012.35/45.1800 16 2012.8 123 18.1 25
    21 011.40/60.2000 2178 1825 144 2110 1891 48 33 M30 60 8 2001
    2002
    1998 132 12 120 0.5 16 2268.8 139 24.1 33.3 1100
    012.40/60.2000 18 2264.4 123 27.1 37.5
    22 011.40/60.2240 2418 2065 144 2350 2131 48 33 M30 60 8 2241
    2242
    2238 132 12 120 0.5 16 2492.8 153 24.1 33.3 1250
    012.40/60.2240 18 2498.4 136 27.1 37.5
    23 011.40/60.2500 2678 2325 144 2610 2391 56 33 M30 60 8 2501
    2502
    2498 132 12 120 0.5 18 2768.4 151 27.1 37.5 1400
    012.40/60.2500 20 2776 136 30.1 41.8
    24 011.40/60.2800 2978 2625 144 2910 2691 56 33 M30 60 8 2802 2798 132 12 120 0.5 18 3074.4 168 27.1 37.5 1600
    012.40/60.2800 20 3076 151 30.1 41.8
    25 011.50/75.3150 3376 2922 174 3286 3014 56 45 M42 84 8 3152 3147 162 12 150 0.5 20 3476 171 37.7 52.2 2800
    012.50/75.3150 22 3471.6 155 41.5 57.4

    Please contact us if you have any inquiry!
