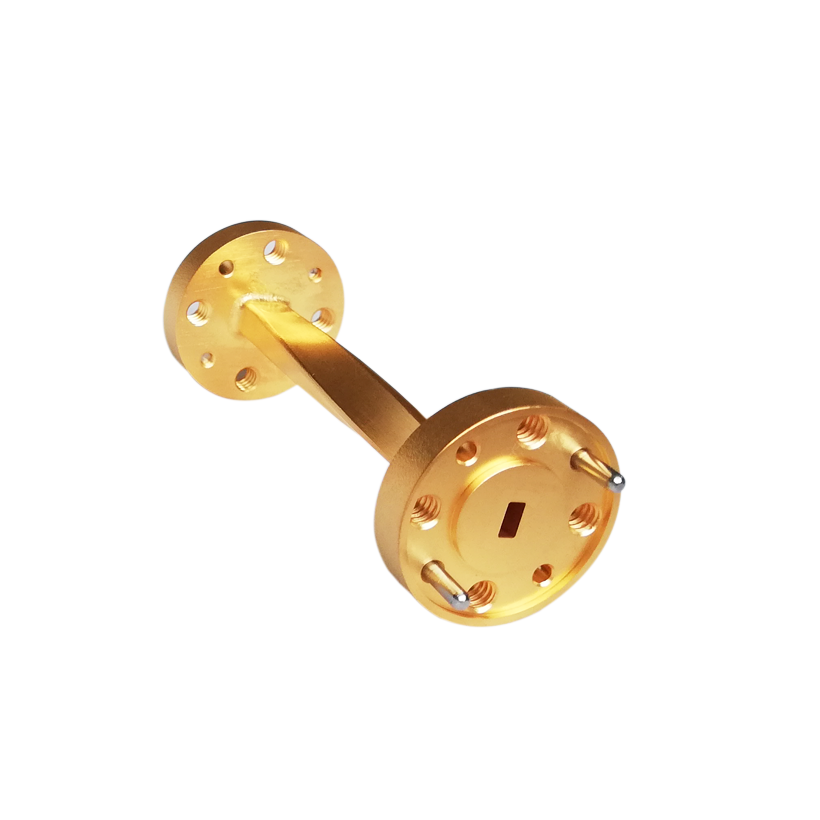

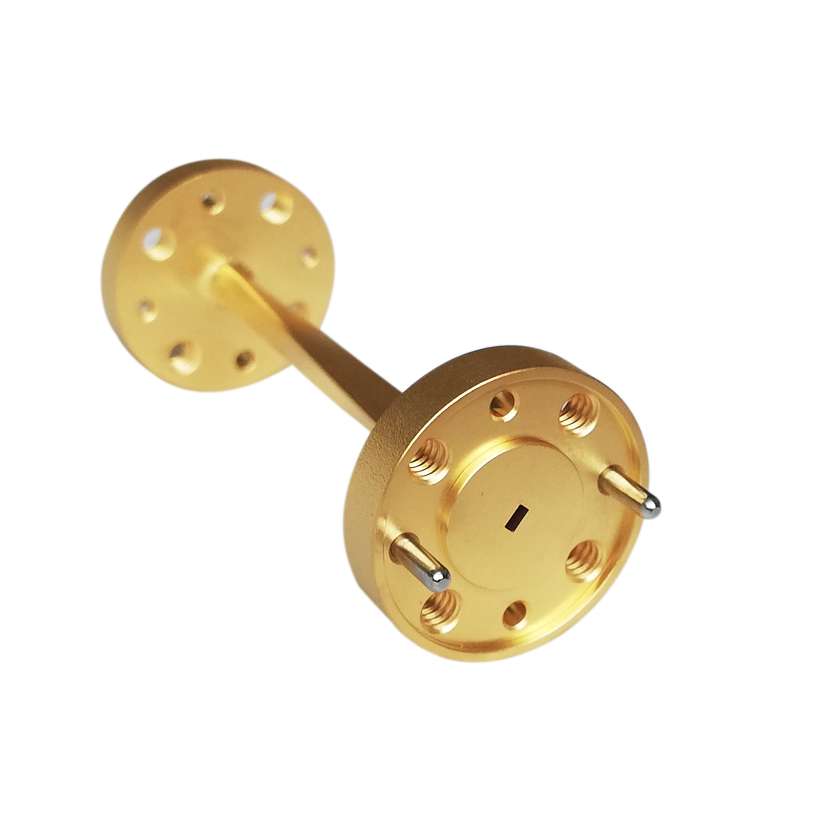

WR10 Twisted Waveguide 75-110GHz 90Degree

Short Description:

-10WTA50 twisted waveguide The frequency covers 75-110GHz, the insertion loss is 0.5dB (Typ), and the low VSWR is 1.10:1 (Typ). -10WTA50 can cover all frequency bands of rectangular waveguide WR10(BJ900), and the output is two FUGP900 (UG-387 / U-M) flanges. It can withstand 20 W continuous wave power and 6 KW peak power. The rectangular twisted waveguide of Tech microwave is manufactured by precision processing technology to ensure high quality and robustness. It is very suitable for radar antenna system, laboratory test device, microwave radio, satellite communication and other applications requiring low insertion loss and low return loss.


Product Detail

Product Tags

The main technical indicators

Waveguide model BJ900(WR10)
Frequency(GHz) 75-110
VSWR 1.15Max
Twisted  angle(°) 90
Insertion loss(dB) 0.5Max
Flange FUGP900(UG-387/U-M)
Material Brass
Length 50mm
Size(mm) 50*19.1*19.1
Weight(Kg) 0.02

The -WTA series waveguide twists are designed to provide changes in waveguide orientation with minimum energy loss and reflections.As integral parts in many of ferrite devices, these twists efficiently adapt  polarization-rotated  RF  fields  to  the  orientation  of  the  remaining  transmission line components.  The -WTA series waveguide can realize any angle torsion within 0 ° ~ 90 °.The  units  are  available  in  standard waveguide sizes from 8.2 to 400 GHz.  The torsion angle, length, flange form, surface treatment method and electrical parameters of the twisted waveguide can be customized according to the user’s requirements.

Features

Low standing wave, Low loss, Smooth 45°/90° Polarization

Model

Frequency

VSWR

Standard length

Minimum length

Flange

Material

Surface treatment

(GHz)

(mm)

(mm)

-90WTA

8.20-12.40

≤1.10

100

45

FBP/FBM

Brass

Silver-plate

-75WTA

9.84-15.0

≤1.10

100

40

FBP/FBM

Brass

Silver-plate

-62WTA

11.9-18.0

≤1.10

100

40

FBP/FBM

Brass

Silver-plate

-51WTA

14.5-22.0

≤1.10

60

35

FBP/FBM

Brass

Silver-plate

-42WTA

17.6-26.7

≤1.10

60

35

FBP/FBM

Brass

Silver-plate

-34WTA

21.7-33.0

≤1.10

60

35

FBP/FBM

Brass

Silver-plate

-28WTA

26.5-40.0

≤1.10

50

30

FBP/FBM

Brass

Silver-plate

-22WTA

32.9-50.1

≤1.15

50

30

FUGP

Brass

Gold-plate

-19WTA

39.2-59.6

≤1.15

50

30

FUGP

Brass

Gold-plate

-15WTA

49.8-75.8

≤1.15

50

25.4

FUGP

Brass

Gold-plate

-12WTA

60.5-91.9

≤1.15

50

25.4

FUGP

Brass

Gold-plate

-10WTA

73.8-112

≤1.15

50

25.4

FUGP

Brass

Gold-plate

-8WTA

92.2-140

≤1.15

50

25.4

FUGP

Brass

Gold-plate

-6WTA

113-173

≤1.15

50

25.4

FUGP

Brass

Gold-plate

-5WTA

145-220

≤1.15

50

25.4

FUGP

Brass

Gold-plate

-4WTA

172-261

≤1.15

50

25.4

FUGP

Brass

Gold-plate

-3WTA

217-330

≤1.15

50

25.4

FUGP

Copper

Gold-plate

-2.8WTA

260-400

≤1.15

50

25.4

FUGP

Copper

Gold-plate
