Standard Ground Mouth Flask Oblique shape,with two or three necks

Short Description:

Product Name: Flask Oblique shape

Characteristic:

1. Oblique shape

2.with two or three necks,

3. Standard Ground Mouth

Material: Boro 3.3 glass

Color: Clear

OEM is available

Payment Term: T/T,L/C,Western Union,Palpay

Samples: Offered within 5 days generally

Loading Port: Qingdao /Shanghai port or up to customer

Delivery Time:15-30 days up to customer’s quantity


Product Detail

Product Tags

Laboratory Glassware

Flask Oblique Shape

Flask Oblique Shape Introduction

The FLASK OBLIQUE SHAPE usually has the appearance of a round neck. It has two or three ports and can be used to add multiple reactants at the same time, or to add a condenser. Its narrow mouth is used to prevent the solution from spilling or reducing the evaporation of the solution, and can be used in conjunction with the rubber stopper to connect other glass equipment.

About Flask Oblique Shape

Product Details

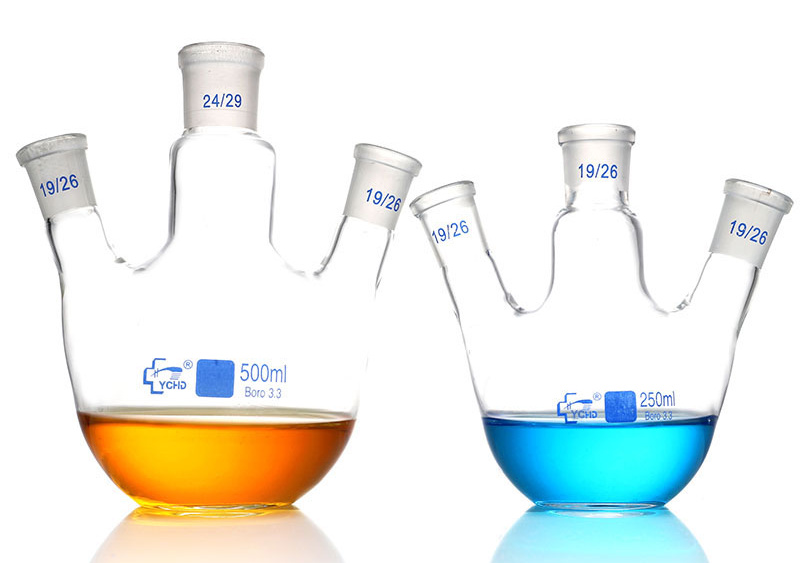

Standard (1)

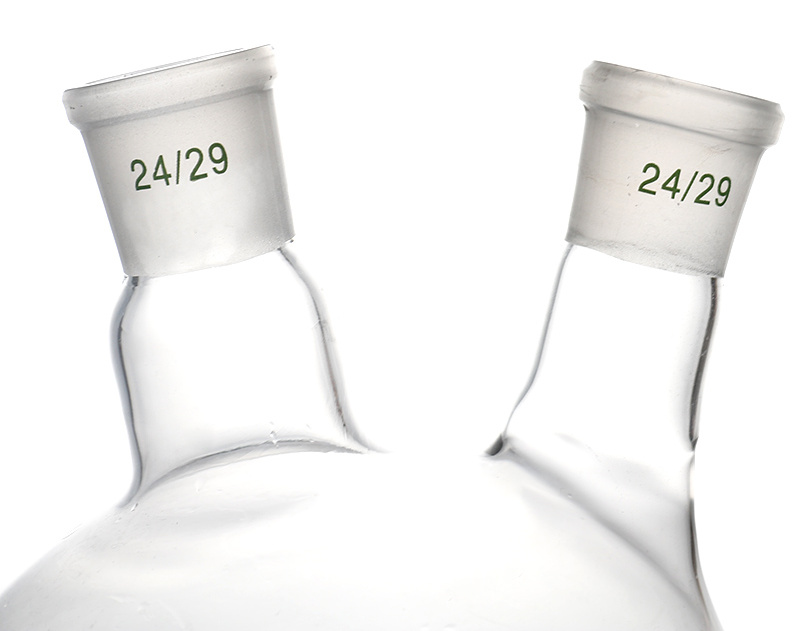

Standard (2)

High borosilicate glass:

Adopt high borosilicate glass, high temperature resistance, strong and durable.

Smooth surface:

The surface of the bottle body is smooth, no protruding feeling, beautiful and generous.

Product use

Used in various industrial and mining enterprises, chemical laboratories of colleges and universities for storage of various chemicals, reagents and solutions.

Product Specification

The dimensions are all measured by hand, so there may be some errors. Please contact us for the specific freight.

Standard Ground Mouth Flask Oblique shape,with two or three necks  (1)

5003

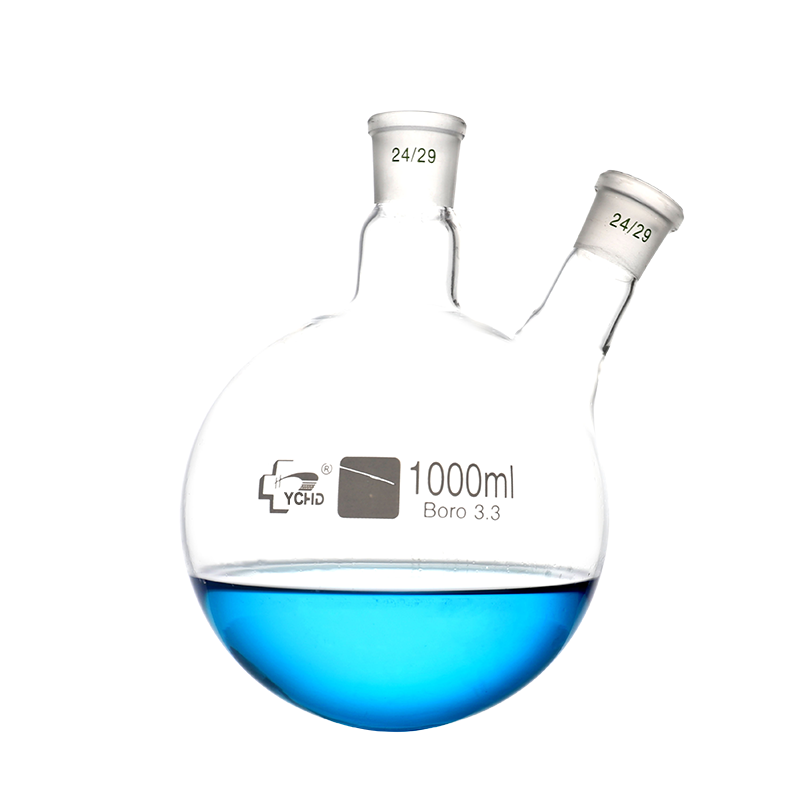

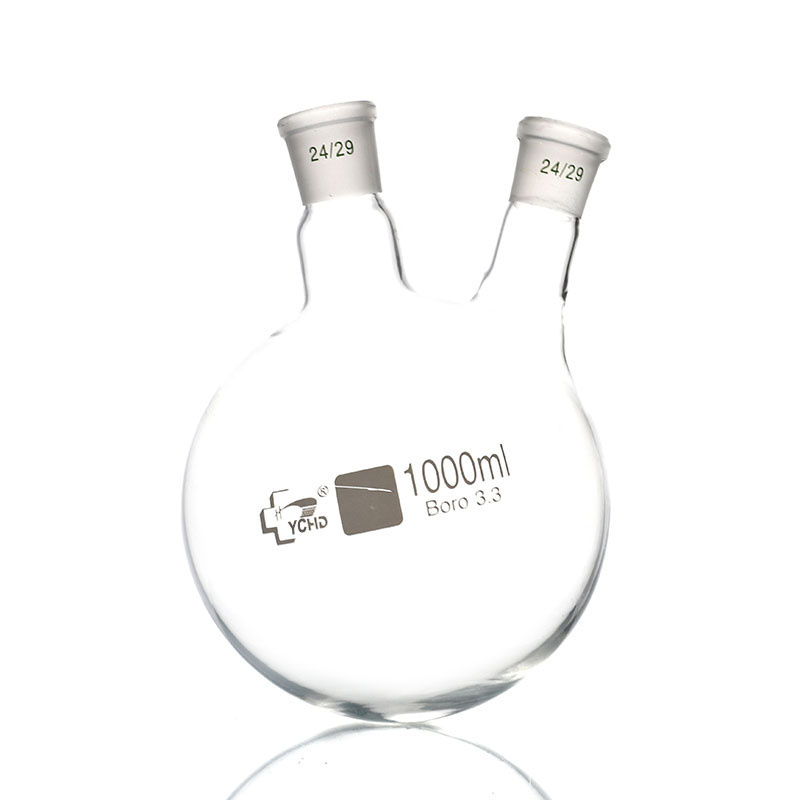

Flask Oblique shape,with two necks, Standard Ground Mouth

Capacity(ml)

Ground mouth

Side ground mouth

Height(mm)

100

19/26

14/23

106

100

24/29

14/23

109

250

19/26

14/23

134

250

24/29

14/23

139

250

24/29

19/26

139

250

29/32

14/23

145

250

29/32

19/26

145

250

19/26

14/23

158

500

24/29

14/23

161

500

24/29

19/26

161

500

29/32

14/23

167

500

29/32

19/26

167

500

24/29

14/23

196

1000

24/29

19/26

196

1000

24/29

24/29

196

1000

29/32

14/23

200

1000

29/32

19/26

200

1000

29/32

24/29

200

2000

24/29

19/26

231

2000

24/29

24/29

231

2000

29/32

19/26

234

2000

29/32

24/29

234

Standard

5004

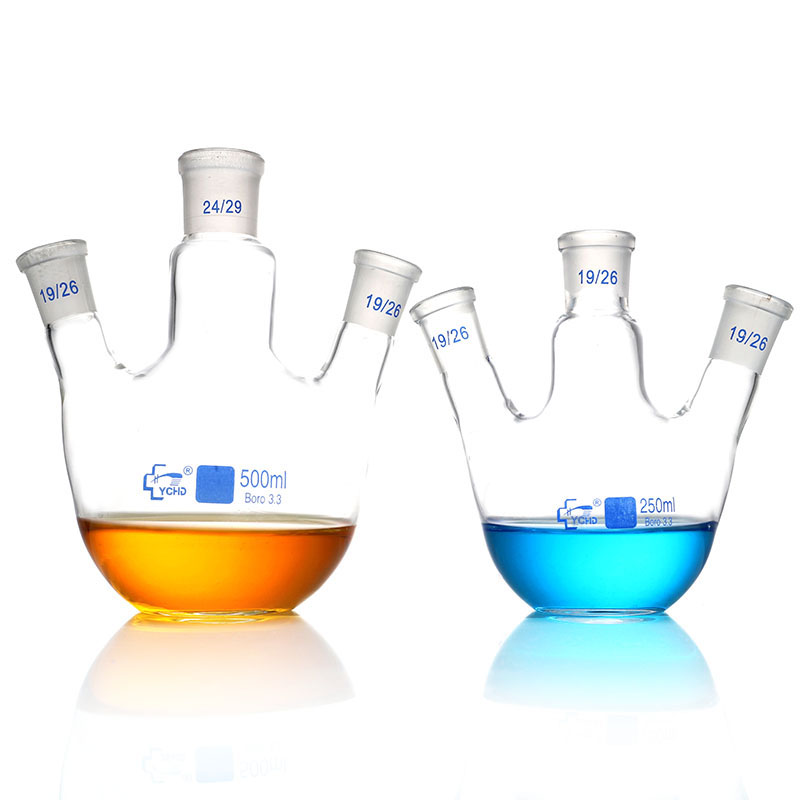

Flask Oblique shape,with three necks, Standard Ground Mouth

Capacity(ml)

Middle ground mouth

Side ground mouth

Height(mm)

250

24/29

19/26

139

250

24/29

24/29

139

250

29/32

14/23

145

150

29/32

19/26

145

500

19/26

14/23

158

500

19/26

19/26

158

500

24/29

14/23

161

500

24/29

19/26

161

500

24/29

24/29

161

500

29/32

14/23

167

500

29/32

19/26

167

1000

19/26

14/23

188

1000

19/26

19/26

180

1000

24/29

14/23

196

1000

24/29

19/26

196

1000

24/29

24/29

196

1000

29/32

14/23

200

1000

29/32

19/26

200

1000

29/32

24/29

200

1000

29/32

29/32

200

2000

24/29

24/29

231

2000

29/32

19/26

234

2000

29/32

24/29

234

2000

29/32

29/32

234

3000

29/32

24/29

281

3000

34/35

24/29

284

5000

40/38

24/29

333

5000

50/42

24/29

337

Product Parameters

BOROSILICATE GLASS

BORO3.3

SiO2 Content >80%
Strain Point 520°C
Annealing Point 560°C
Softening Point 820°C
Refractive Index 1.47
Light Transmission(2mm) 0.92
Elastic Modulus 67KNmm-2
Tensile Strength 40-120Nmm-2
Glass stress Optical Coefficient 3.8*10-6mm2/N
Processing Temperature(104dpas) 1220°C
Linear Coefficient of Expansion(20-300°C) 3.3*10-6K-1
Density(20°C) 2.23gcm-1
Specific Heat 0.9jg-1K-1
Thermal Conductivity 1.2Wm-1K-1
Hydrolytic Resistance(ISO 719) Grade 1
Acid Resistance(ISO 185) Grade 1
Alkali Resistance(ISO 695) Grade 2
Thermal Shock Resistance Rod6*30mm 300°C

Scope Of Application

g

Medical field

Classroom equipment

df

Laboratory

Chemical industry
