SOAP WRAPPING MACHINE | HORIZONTAL PACKING MACHINE SOONTRUE

Short Description:

Application:

Its suitable to Pack Daily necessities like: Soap packaging machine, Washing sponge packaging machine, Napkin tissue packing machine, cultery packing machine, spoon packing machine, forks packing machine, face mask packing mahcine, etc.


Product Detail

Product Tags

Specification

Model SZ180 (Single Cutter) SZ180 (Double Cutter) SZ180 (Triple Cutter)
Bag Size: Length 120-500mm 60-350mm 45-100mm
Width 35-160mm 35-160mm 35-60mm
Height 5-60mm 5-60mm 5-30mm
Packing Speed 30-150bags/min 30-300bags/min 30-500bags/min
Film Width 90-400mm
Power Supply 220V 50Hz
Total Power 5.0kW 6.5kW 5.8kW
Machine Weight 400kg
Machine Size 4000*930*1370mm

Main characteristics & Structure features

1. Compact machine structure with smaller footprint area.

2. Carbon steel or stainless steel machine frame with nice appearance.

3. Optimized component design realizing fast and stable packing speed.

4. Servo control system with higher accuracy and flexibility mechanical motion.

5. Different optional configurations and functions meeting different specific requirements.

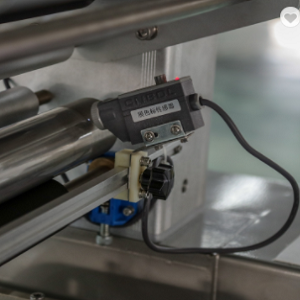

6. High accuracy of color mark tracking function.

7. Easy to use HMI with memory function.

Contrast

1221

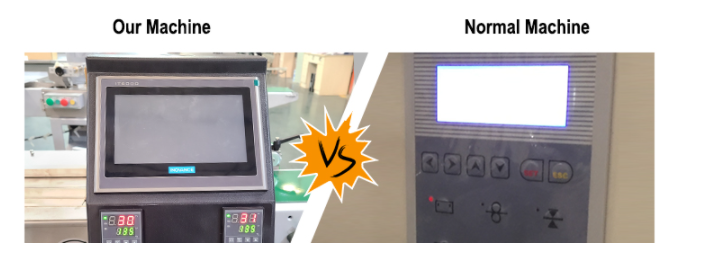

Screen:Most of the daily operations can be performed through the touch screen. The operation interface is simpler and easier to use than the general model, and has a recipe memory function.

 1221

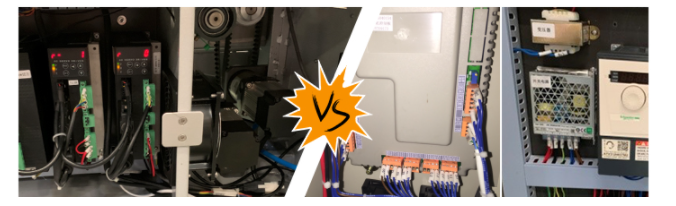

Servo control:3 Servo drive system, compared with the general frequency conversion control model, reduces the adjustment of mechanical transmission parts, and improves the accuracy of the motion.

1221

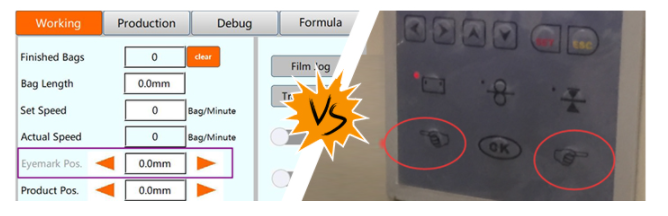

Eye mark position value is adjusted via touch screen. Position value is directly showed on the screen.



12

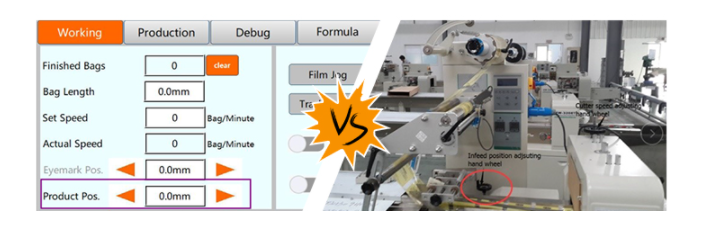

In-feed position is adjusted via touch screen. No need to manually adjust the handwheel.

1221

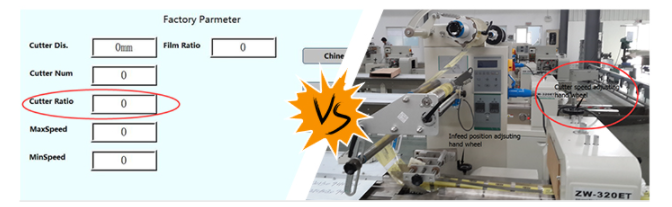

Cutter speed is adjusted via touch screen. Easier to operate than manually adjustment by handwheel.

1221
