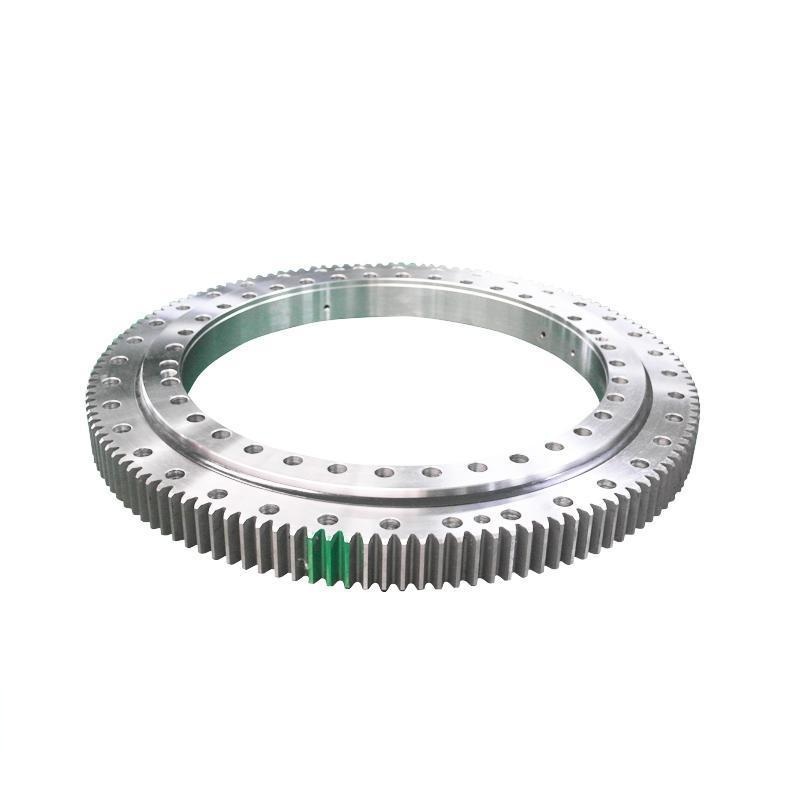

Single row cross roller slewing ring with external gear 111 series swing bearing

Short Description:

The single-row cross-roller slewing ring is also composed of two inner and outer rings, with compact structure, high manufacturing precision, light weight and small assembly clearance. The inner ring and the outer ring are connected by rollers, the rollers are arranged in a 1:1 cross, which can bear axial force, tilting moment and larger radial force at the same time. The structure of the cross roller bearing itself is a line contact, which can also be understood as a surface contac…


Product Detail

Product Tags

The single-row cross-roller slewing ring is also composed of two inner and outer rings, with compact structure, high manufacturing precision, light weight and small assembly clearance. The inner ring and the outer ring are connected by rollers, the rollers are arranged in a 1:1 cross, which can bear axial force, tilting moment and larger radial force at the same time. The structure of the cross roller bearing itself is a line contact, which can also be understood as a surface contact, and the line surface contact of the crossed round roller bearing is front, back and left, ensuring the stability of the entire layout.

It is widely used in lifting and transportation, military products, medical equipment, bucket wheel machines, park amusement machines, filling machines etc, which play a very important role in construction machinery products.

slewing bearing 111 series are externally toothed single-row cross roller slewing bearings with teeth on the outer ring, which are generally driven by pinions to achieve a transmission effect. Please see the following table for specific parameters:



No External gear
DL
mm
Dimensions Mounting Dimension Structural Dimension Gear Data Gear circumferential force weight
kg
D
mm
d
mm
H
mm
D1
mm
D2
mm
n mm dm
mm
L
mm
n1
mm
D3
mm
d1
mm
H1
mm
h
mm
b
mm
x m
mm
De
mm
z Normalizing
Z 104N
Quenching
T 104N
1 111.25.500 602 398 75 566 434 20 18 M16 32 4 498 502 65 10 60 0.5 5 629 123 3.7 5.2 80
112.25.500 6 628.8 102 4.5 6.2
2 111.25.560 662 458 75 626 494 20 18 M16 32 4 558 562 65 10 60 0.5 5 689 135 3.7 5.2 90
112.25.560 6 688.8 112 4.5 6.2
3 111.25.630 732 528 75 696 564 24 18 M16 32 4 628 632 65 10 60 0.5 6 772.8 126 4.5 6.2 100
112.25.630 8 774.4 94 6 8.3
4 111.25.710 812 608 75 776 644 24 18 M16 32 4 708 712 65 10 60 0.5 6 850.8 139 4.5 6.2 110
112.25.710 8 854.4 104 6 8.3
5 111.28.800 922 678 82 878 722 30 22 M20 40 6 798 802 72 10 65 0.5 8 966.4 118 6.5 9.1 170
112.28.800 10 968 94 8.1 11.4
6 111.28.900 1022 778 82 978 822 30 22 M20 40 6 898 902 72 10 65 0.5 8 1062.4 130 6.5 9.1 190
112.28.900 10 1068 104 8.1 11.4
7 111.28.1000 1122 878 82 1078 922 36 22 M20 40 6 998 1002 72 10 65 0.5 10 1188 116 8.1 11.4 210
112.28.1000 12 1185.6 96 9.7 13.6
8 111.28.1120 1242 998 82 1198 1042 36 22 M20 40 6 1118 1122 72 10 65 0.5 10 1298 127 8.1 11.4 230
112.28.1120 12 1305.6 106 9.7 13.6
9 111.32.1250 1390 1110 91 1337 1163 40 26 M24 48 5 1248 1252 81 10 75 0.5 12 1449.6 118 11.3 15.7 350
112.32.1250 14 1453.2 101 13.2 18.2
10 111.32.1250 1540 1260 91 1487 1313 40 26 M24 48 5 1398 1402 81 10 75 0.5 12 1605.6 131 11.3 15.7 400
112.32.1400 14 1607.2 112 13.2 18.2
11 111.32.1600 1740 1460 91 1687 1513 45 26 M24 48 5 1598 1602 81 10 75 0.5 14 1817.2 127 13.2 18.2 440
112.32.1600 16 1820.8 111 15.1 22.4
12 111.32.1800 1940 1660 91 1887 1713 45 26 M24 48 5 1798 1802 81 10 75 0.5 14 2013.2 141 13.2 18.2 500
112.32.1800 16 2012.8 123 15.1 22.4
13 111.40.2000 2178 1825 112 2110 1891 48 33 M30 60 8 1997 2003 100 12 90 0.5 16 2268.8 139 18.1 25 900
112.40.2000 18 2264.4 123 20.3 28.1
14 111.40.2240 2418 2065 112 2350 2131 48 33 M30 60 8 2237 2243 100 12 90 0.5 16 2492.8 153 18.1 25 1000
112.40.2240 18 2498.4 136 20.3 28.1
15 111.40.2500 2678 2325 112 2610 2391 56 33 M30 60 8 2497 2503 100 12 90 0.5 18 2768.4 151 20.3 28.1 1100
112.40.2500 20 2776 136 22.6 31.3
16 111.40.2800 2978 2625 112 2910 2691 56 33 M30 60 8 2797 2803 100 12 90 0.5 18 3074.4 168 20.3 28.1 1250
112.40.2800 20 3076 151 22.6 31.3
17 111.50.3150 3376 2922 134 3286 3014 56 45 M42 84 8 3147 3153 122 12 110 0.5 20 3476 171 27.6 38.3 2150
112.50.3150 22 3471.6 155 30.4 42.1
18 111.50.3550 3776 3322 134 3686 3414 56 45 M42 84 8 3547 3553 122 12 110 0.5 20 3876 191 30.4 38.3 2470
112.50.3550 22 3889.6 174 30.4 42.1
19 111.50.4000 4226 3772 134 4136 3864 60 45 M42 84 10 3997 4003 122 12 110 0.5 22 4329.6 194 30.4 42.1 2800
112.50.4000 25 4345 171 34.5 47.8
20 111.50.4500 4726 4272 134 4636 4364 60 45 M42 84 10 4497 4503 122 12 110 0.5 22 4835.6 217 30.4 42.1 3100
112.50.4500 25 4845 191 34.5 47.8
