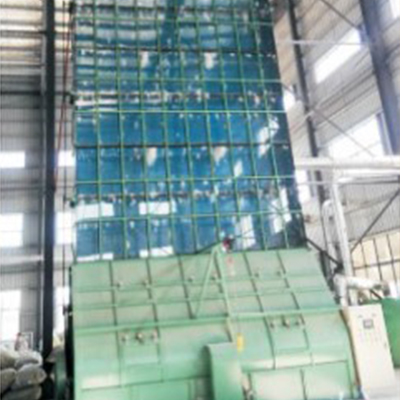

Single chamber sorting machinery has two models: raw feather model and high quality down model.

They are used for rough sorting raw feather and extracting high quality down. The raw feather model is mainly used to remove the impurity and dust so as to deep process in next procedure. The high quality down model is mainly used to extract high quality down from the rough sorted feather.

With cylinder to control the valve for discharging down.
2 pieces of package-loading boxes and dust collector.
With the 1t on electronic scale silo.
3MM The front chamber: On both ends of the wallboard is,roller plate steel plate is .
The principle axis steel pipe
The material of the principal wind channel
The lower 3 sections of wind channel:end plate frame is channel steel,The front and rear frames are square tubes, and the wallboard is steel plate.
the upper 5 sections of wind channel:the frame is square tube,wall plate is steel plate.
Agitating vane of the front chamber is square pipe.
the sieve plate hole of the front chamber .
The motor power&control mode
The principle fan :2set 11kw,Frequency control of speed ,can set the air volume by time section.
Agitating motor of the front chamber : 18.5kw, Frequency control of speed.
with assist feathers-lifting shaft of the wind channel of the front chamber
1台15KW feather-discharging fan:1set 15kw
5.5KW feather-discharging stirring motor:5.5kw
the first /second/third section of the wind channel of the front chamber with the feathers-lifting shaft,and match maintenance platform ,guardrail and ladder.
Bagging box: with 2sets,can be used for feathers-discharging of front chamber and back chamber.
The bagging box bag gate with a pocket stopper.
Stirring discharging feathers of back chamber.
Back Raising shaft of front chamber should keep the special requirement.
Equip the brushing system of back chamber .
