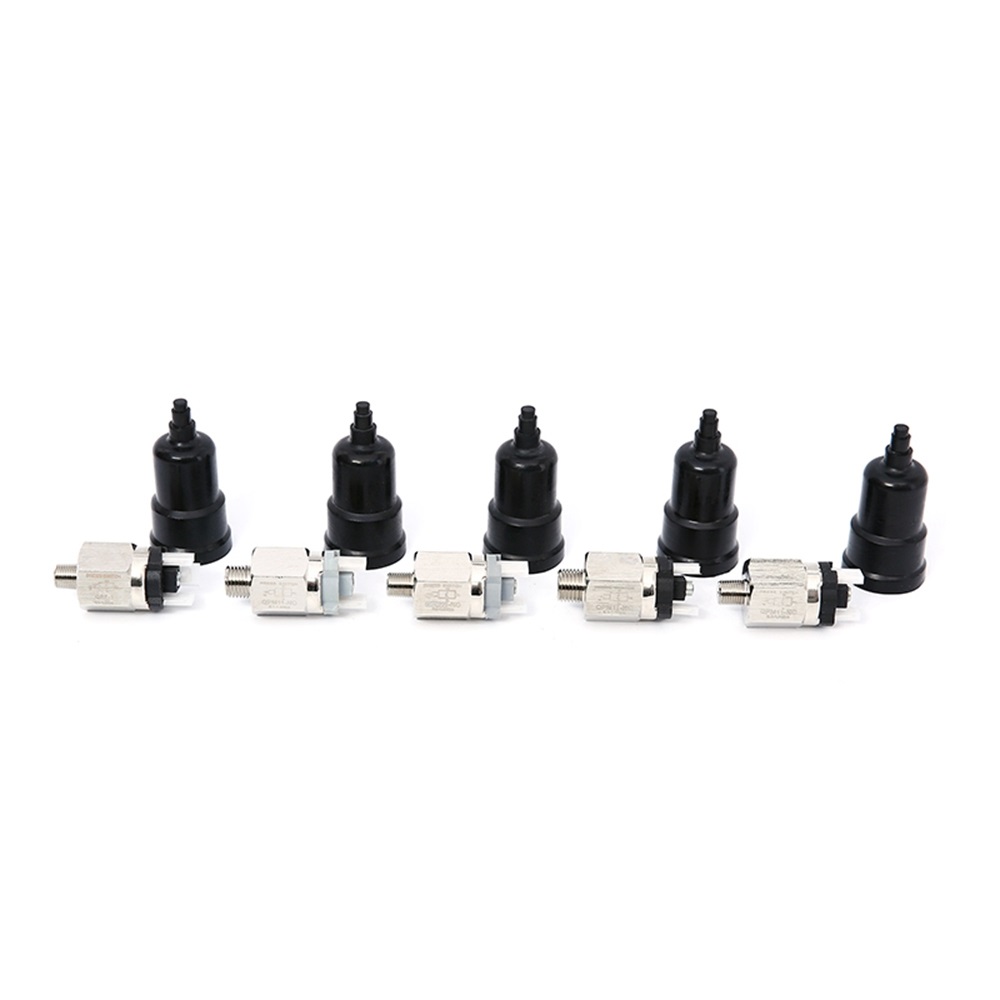

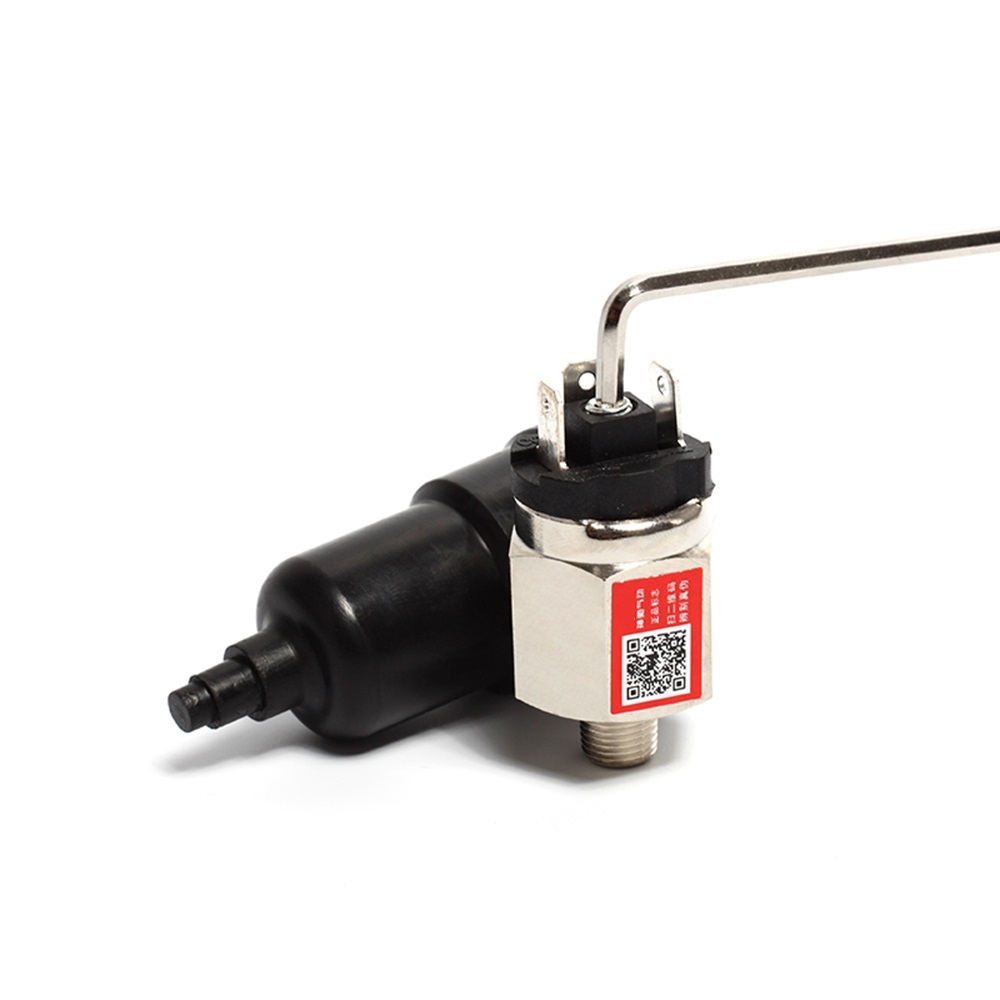

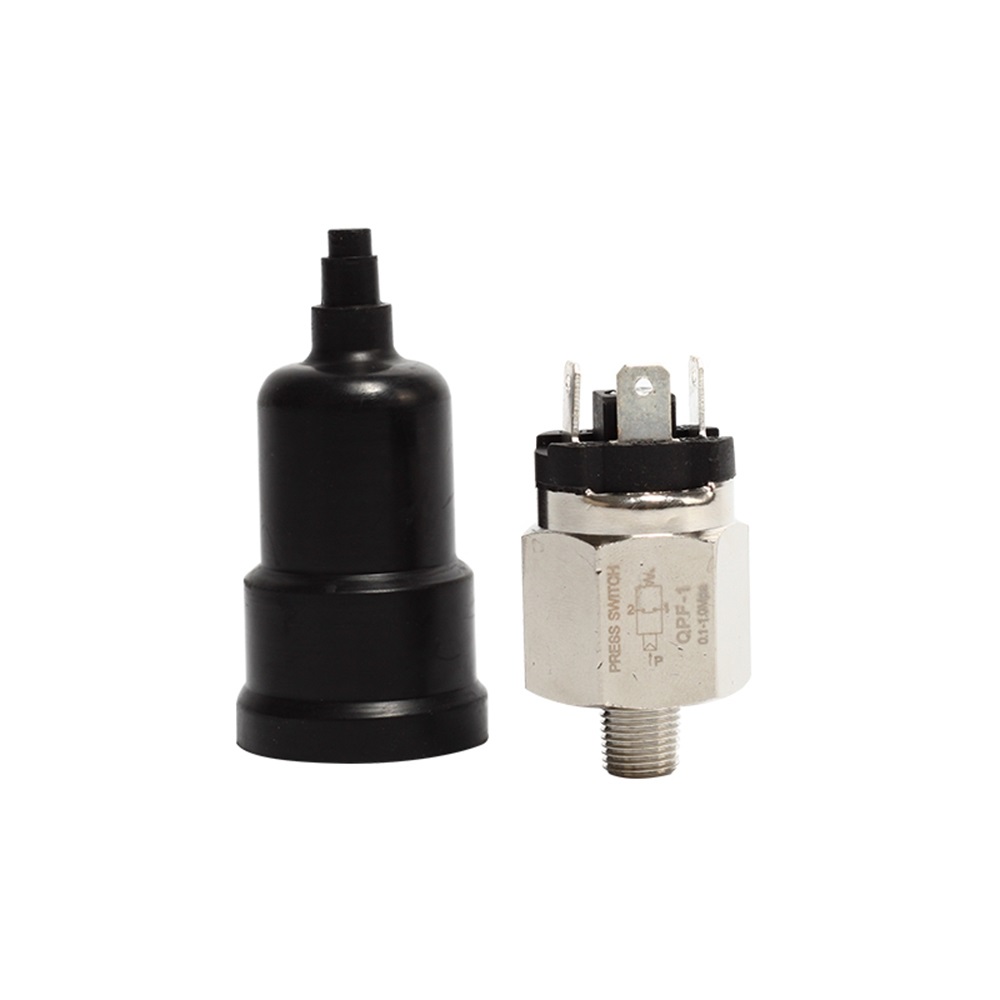

Pneumatic QPM QPF series normally open normally closed adjustable air pressure control switch
Product Parameters
We strive to be perfect in every detail.
Made of high quality aluminum materials, firm with long service life.
Type: Adjustable Pressure Switch.
Normally open and closed integrated.
Working voltage: AC110V,AC220V,DC12V,DC24V Current: 0.5A, Pressure range: 15-145psi
(0.1-1 .0MPa) , Max pulse number: 200n/min.
Used to control the pressure of the pump, keeping it in normal operation.
Note :
NPT thread can be customized.
| Model | QPM11-NO | QPM11-NC | QPF-1 |
| Working Media | Compressed Air | ||
| Working Pressure Range | 0.1~0.7Mpa | ||
| Temperature | -5~60℃ | ||
| Action Mode | Adjustable Pressure Type | ||
| Installation And Connection Mode | Male Thread | ||
| Port Size | PT1/8(Need Customized) | ||
| Working Pressure | AC110V, AC220V, DC12V, DC24V | ||
| Max. Working Current | 500mA | ||
| Max. Power | 100VA, 24VA | ||
| Isolation Voltage | 1500V, 500V | ||
| Max. Pulse | 200 Cycles/Min | ||
| Service Life | 106 Cycles | ||
| Protective Class(With Protective Sleeve) | IP54 | ||
