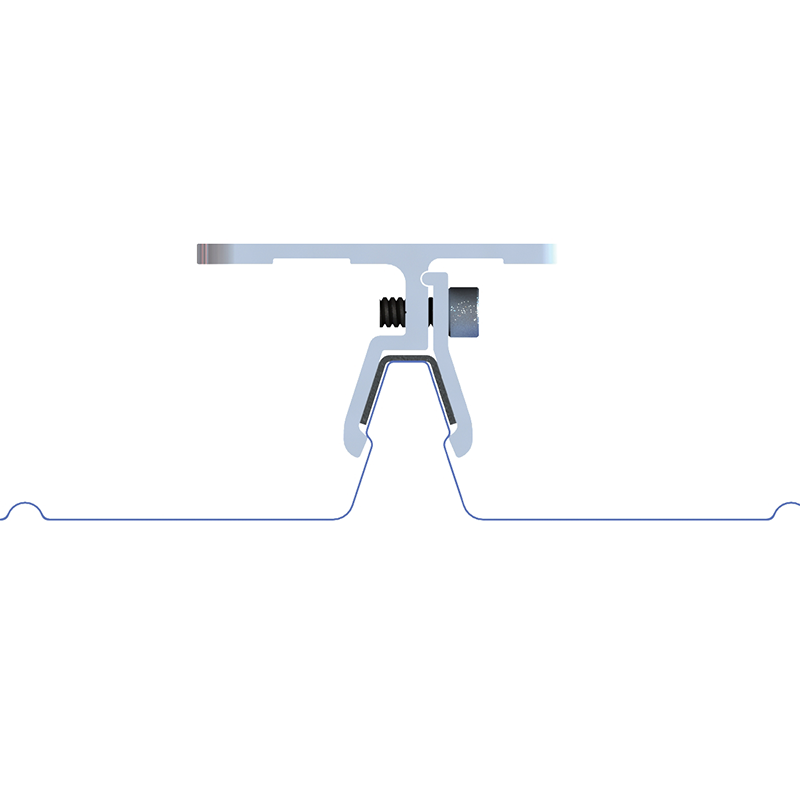

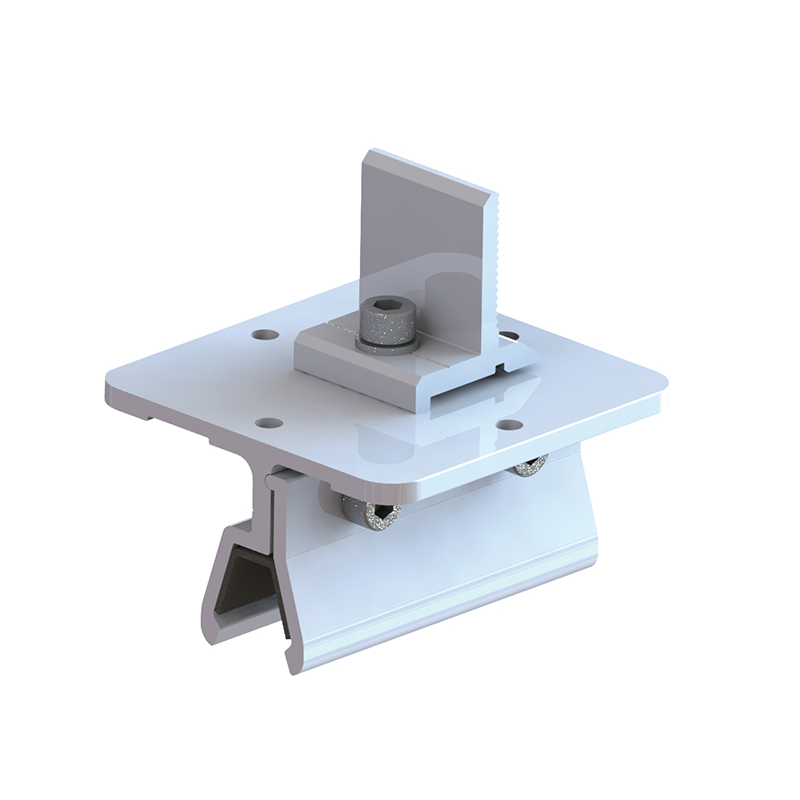

Metal Roof Mount – Klip Lok Roof Clamps
| Dimensions (mm) | A | B | C | D |
| -RC-12 | 18 | 13.5 | 10.5 | 10.5 |
| -RC-13 | 26 | 29 | 26 | 21.3 |
| -RC-14 | 17.8 | 18.5 | 30.5 | 26 |
| -RC-19 | 13 | 20 | 24.8 | 20 |
| -RC-20 | 31.6 | 13.5 | 41 | 36.8 |
| -RC-28 | 22.4 | 19.6 | 35.5 | 31 |
| Installation Site | Metal Roof |
| Wind Load | up to 60m/s |
| Snow Load | 1.4kn/m2 |
| Tilt Angle | Parallel to Roof Surface |
| Standards | AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006 |
| Material | Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 |
| Warranty | 10 Years Warranty |
