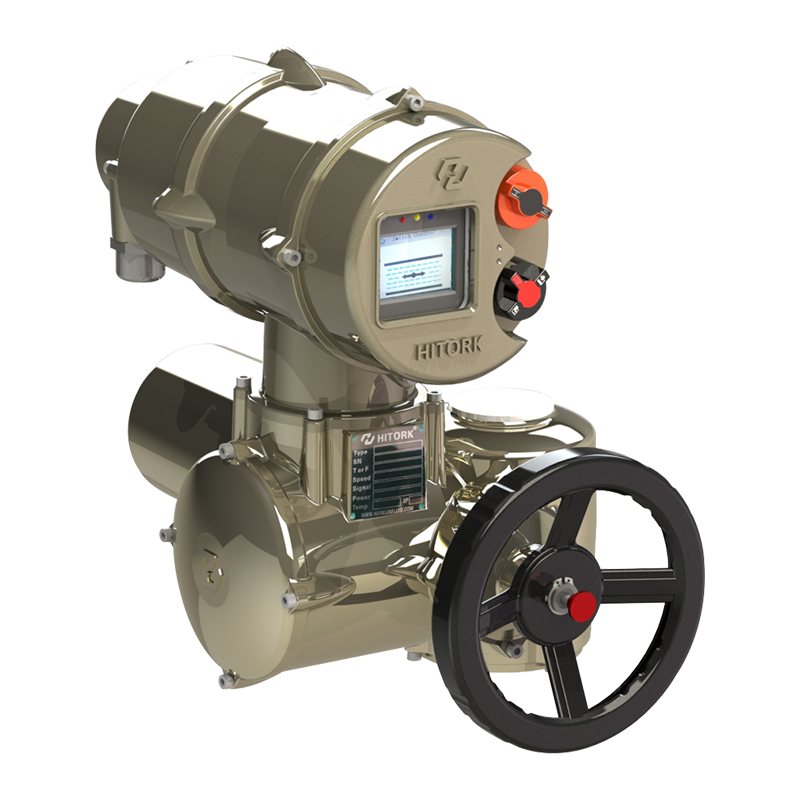

HITORK HKM.2-A

Short Description:

HITORK2.0 second-generation IoT HKM.2 multi-turn electric actuator can be used to control a variety of Valves and other similar products, such as gate valves, globe valves, regulating valves, etc., are widely used in electric power, Petrochemical, water treatment, shipbuilding, paper making and other industries. The standard configuration of the A series is a color screen display, optional bus communication mode, and Bluetooth control.> Light weight, small size, high strength, the shell is made of special aluminum alloy casting> Stroke and torque adopt absolute encoder, no need to open the cover for debugging> Comply with ISO5210 standard interface> IP67 (IP68 optional)> Support bus, Bluetooth, Internet of Things> Plug-in type double wiring board structure, double sealing, convenient wiring maintenance


Product Detail

Product Tags

Product Introduction

IoT type, bus type

HITORK 2.0 H series IOT intelligent type actuators support IOT communication, single-machine IOT access(GPRS/4G/5G), have more flexible equipment networking, control equipment operating data dynamically, manage online real-time, push fault alarm timely and improve operation efficiency.

Self-built IoT platform can realize product life-long tracking management, expert system, intelligent diagnosis, predictive maintenance reminder, real-time monitoring of WeChat applet, active alarm push, remote support, etc.

At the same time, H series and A series products also support mainstream bus protocols such as PROFIBUS, MODBUS, FF, DeviceNet, and HART.

Split

Split actuators are suitable for high temperature, vibration, and occasions where installation space is limited or inconvenient to operate. Modbus communication is used between the electrical control part and the mechanical part, and the separation distance can be up to 150 meters.

Drive connection

The bottom connection size of the actuator conforms to the ISO 5210 standard. In addition to the standard hollow shaft with keyway, the shaft sleeve can also provide a three-jaw shaft sleeve and a T-thread sleeve that can withstand thrust.

The bottom connection size of the actuator and the type and specifications of the shaft sleeve can also be customized according to the needs of users.

Type: Multi-turn

Voltage: 200, 220, 240, 380, 400, 415, 440, 480, 500, 550, 660, 690

Control type: on-off, modulating

Series: intelligent
