High temperature and corrosion resistance Ceramic Corrugated plate packing

Short Description:

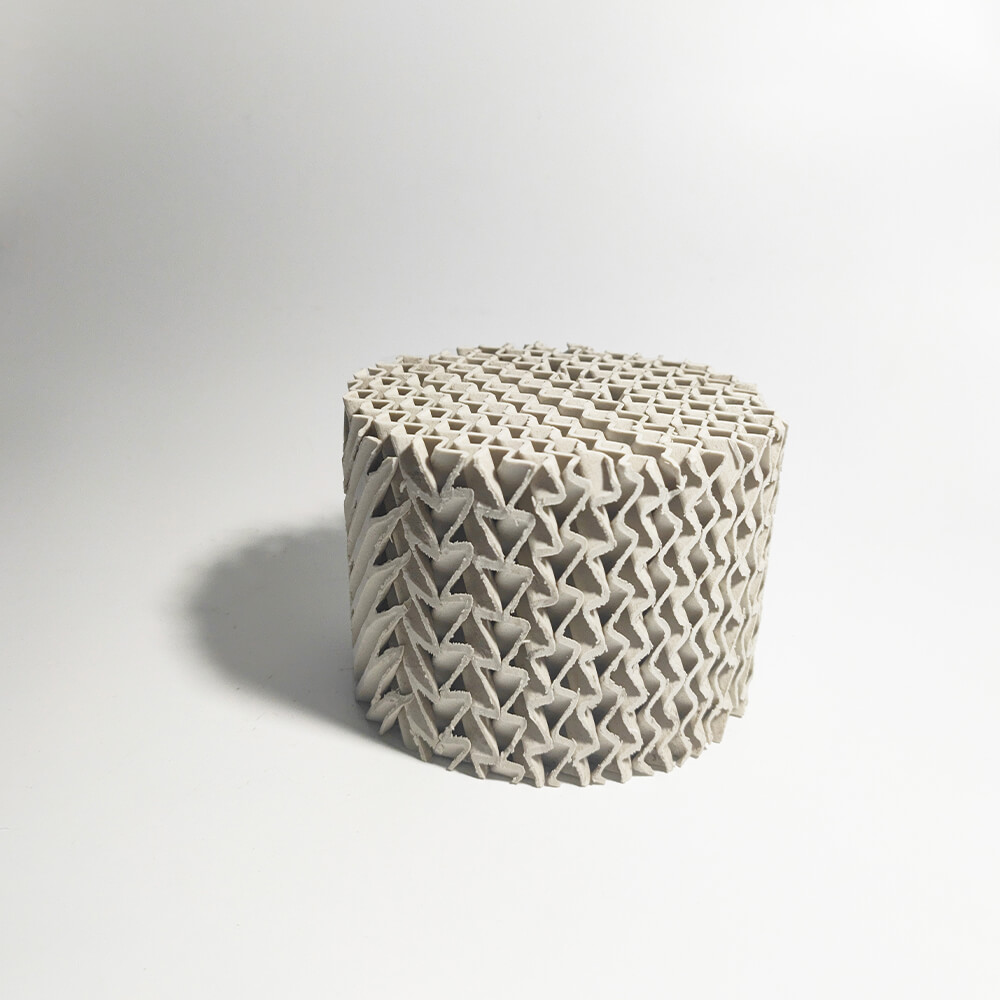

It is constructed of corrugated sheets of ceramic.The angle of inclination of the corrugations of adjacent sheets is reversed with respect to the vertical column axis, form mixing cells at every point where the corrugation intersect.

Send email to us

Product Detail

Product Tags

Ceramic Corrugated plate packing

Owing to ceramic surface has good hydrophilic, it can enlarge to gas-liquid contacting surface area. Meanwhile, ceramic surface’s microporous structure also improve wettability and generate extremely thin liquid film. Turbulent liquid flow and tortuous vapor flow passages promote mixing of liquid and vapor with a low pressure drop. This is why ceramic Corrugated plate packing has same mass transfer efficiency same as metal packing. Furthermore, Resistant to corrosion and high temperature performance is excellent than other material packing.

In addition, ceramic excellent corrosion resistance makes Ceramic Corrugated plate packing more suitable for sulfuric acid absorption, the nitrate concentration,gas purification and so on. Ceramic high thermal stability make its operating temperature exceeds 1000 ℃

Technical Parameter

Type/	Surface area m²/m³	Buld Density Kg/m³	Void Ratio/ %	Obl Angle/ ℃	Pressure drop/ mmHg/m	Theo.Plate m-1	Hydraulic Dia. mm
250Y	250	420	80	45	2	2.5	12
350Y	350	470	78	45	2.5	2.8	10
400Y	400	500	75	45	3	3	8
450Y	450	520	72	45	4	4	7
550Y	550	620	74	45	5.5	5-6	6
700Y	700	650	72	45	6	7	5
250X	250	380	80	30	2.5	2.3	12
350X	350	450	78	30	3	2.5	10
400X	350	480	75	30	4	2.8	8
450X	450	500	72	30	4.5	3-4	7
500X	500	620	74	30	5.5	5-6	6
700X	700	650	72	30	7	7	5

Trade Details

Related Trade Information
HS Code	6914100000
Package	1: Two Super sacks on Fumigation Pallet 2: 100L plastic woven bag on Fumigation Pallet 3: 500500500 mm carton on Fumigation Pallet 4: Upon your requirement
Process Method	High temperature firing
Material	Al2O. SiO2,Fe2O3 and so on
Typical Application	1.Sulfuric Acid Plant 2.Regenerative Thermal Oxidizers 3. Chlorine Cooling and Drying Towers 4. Bromine and Hydrochloric Acid Plant 5. Liquid Organic Waste Disposal Coolers and Scrubbers 6. Natural Gas Treating and Dehydration units 7. Purification of Aqueous Organic Acids.
Production time	7 days against one 20GP container loading quantity
Executive standard	GB/T 18749-2002 or refer to your detailed requirement
Sample	Free samples within 500 Grams
Other	Accept EPC turnkey,OEM/OEM,Mold Customization,Installation&Guidance,Test, Entrusted design service etc.
