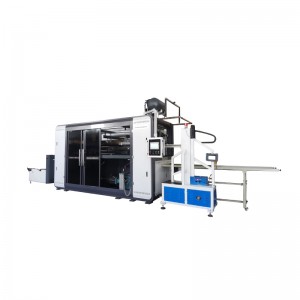

Full Servo Plastic Cup Making Machine HEY12

Short Description:


Product Detail

Product Tags

cup making machine Application

The cup making machine is Mainly for the production of variety plastic containers ( jelly cups, drink cups, package containers, etc) with thermoplastic sheets, such as PP, PET, PE, PS, HIPS, PLA,etc.

Cup Making Machine Technical Specifications

Model

HEY12-6835

HEY12-7542

HEY12-8556

Forming Area

680*350mm

750*420 mm

850*560 mm

Sheet Width

<680 mm

<750 mm

<850 mm

Max. Forming Depth

<180 mm

<220 mm

<180 mm

Heating Rated Power

130kw

140kw

150kw

Dimension

5200*2000*2800mm

5400*2000*2800mm

5500*2000*2800mm

Machine Total Weight

7T

8T

9T

Applicable Raw Material PP, PS, PET, HIPS, PE, PLA
Sheet Thickness 0.2-3.0 mm
Work Frequency <35
Motor Power 15kw
Power Supply Three Phase 380V/50HZ
Pressure Supply 0.6-0.8 Mpa
Max.air Consumption 3.8
Water Consumption 20M3/h
Control System PLC Delta

Supply Sheet Rack

Feeding Reducer with Motor Worm Gear Reducer (Supror)
Pneumatic Pressure AirTAC Cylinder SC63×25=2PSC
Pneumatic Feeding Sheet AirTAC Cylinder SC100×150=2PSC

Electric Control

Human-computer Interface Delta
PLC Delta
Servo Stretching Motor Delta 11KW servo driver+servo motor
Servo Folding Motor Delta 15KW servo driver+servo motor

Forming Station

  1. Standard square tube frame with 100*100, mould is casted steel and upper mould is fixed by nut.
  2. Opening and closing mould driven by eccentric gear connecting rod.Driving power by 15KW (Japan Yaskawa) servo motor, American KALK Reducer,main axis use HRB bearings.
  3. Plastic Cup Thermoforming Machine Main pneumatic component use SMC(Japan) magnetic.
  4. Sheet feeding device with planetary gear reducer motor, 4.4KW Siemens servo controller.
  5. Stretching device uses 11KW Siemens servo.
  6. Lubrication device is fully automatic.
  7. Caterpillars adopt fully enclosed structure, with cooling device and can manually adjust sheet width.
  8. Heating system uses China ceramic far-infrared heaters, stainless steel upper and down heating furnace, upper heater with 12 pcs heating pads vertically and 8 pcs heating pads horizontally , down heater with 11 pcs heating pads vertically and 8 pcs heating pads horizontally.(specification of heating pad is 85mm*245mm);Electric furnace push-out system uses 0.55KW worm gear reducer and ball screw, which is more stable and also protect the heater pads.
  9. Cup Thermoforming Machine Air filtration uses triplet, blowing cup can adjust airflow.
  10. Folding mould is consist of fixed upper plate、flexible mid plate and 4 pillars with surface hard chrome plating 45#.
  11. Eccentric is the construction of connecting rod fold mould, with running range ≤ 240mm.
  12. Electric heating furnace could be moved horizontally and vertically freely by guide-rail from Hiwin Taiwan.
  13. Top cups is controlled by AirTAC (Taiwan) cylinder.

Waste Edge Winding Device

  1. On-line winding
  2. Reducer with 0.75KW motor (1 pc)
