EPDM Rubber Membrane for Pond Lining ,Roofing and Building waterproof

Short Description:

EPDM rubber membrane Benefits ● Type  :Reinforced, Fleece backing, Self adhesive, Homogeneous● Thickness :1.0mm(40mil),1.2mm(45mil), 1.5mm(60mil) or customized● Width:2m (6.6ft), 3m(10ft), 4m(13ft) or customized● Color: White, Grey or customized● Standard:GRI-GM13,CE,ISO9001


Product Detail

Product Tags

EPDM GEOMEMMBRANE

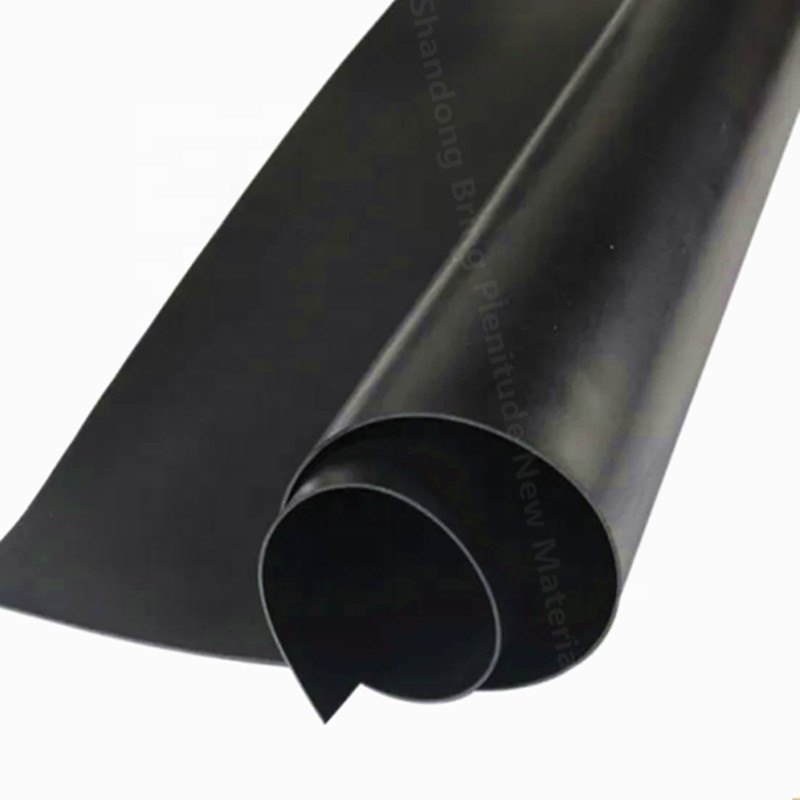

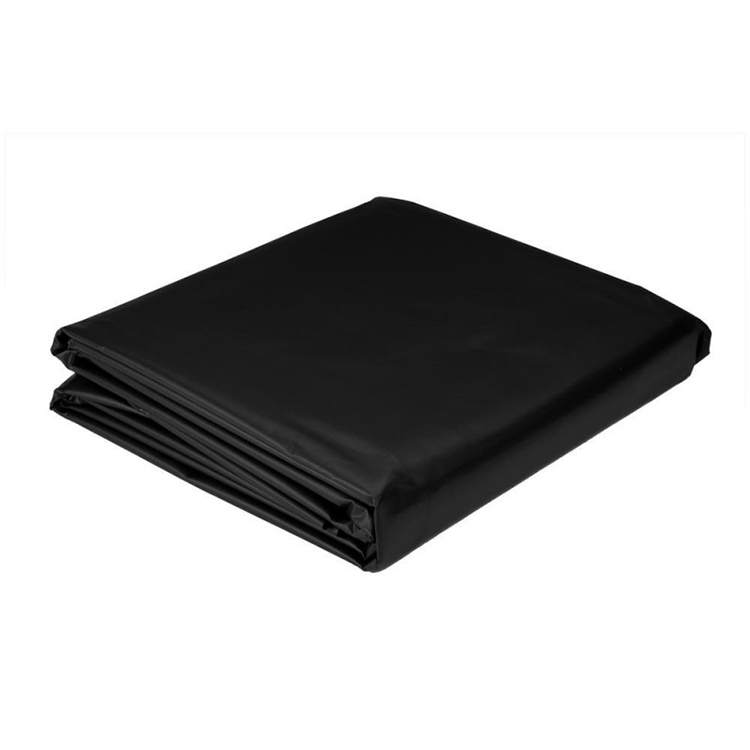

EPDM geomembrane liner is an unreinforced, highly flexible material that is indibly durable. With a soft rubber like feel, similar to an inner tube, this UV-stable product has excellent tensile strength, is highly resistant to punctures, ozone, and weathering.  EPDM geomembrane liners are an excellent choice for exposed applications or as water barriers within earthed in dams. Its easy installation also makes it a favorite for backyard landscapers. EPDM has excellent elongation characteristics, and conforms well to irregularities in the subgrade.

TESTED PROPERTY TEST METHOD UNIT
ENGLISH METRIC
VALUE
ENGLISH(METRIC
45mil 60mil
Color Black Black
Thickness, nominal ±10% ASTM D 5199 mil (mm) 45 (1.14) 60 (1.52)
TENSILE PROPERTIES
Break Strength ASTM D 882 lb/in (kN/m) 50 (9) 65 (11.4)
Break Elongation ASTM D 882 % 500 500
Tear Resistance lbf/in (kN/m) ASTM D 1004 lbs (N) 9 (40) 12 (50)
Puncture Resistance ASTM D 4883 lbs (N) 35 (150) 45 (190)
Brittleness Temperature ASTM D 746 ˚F (˚C) -49(-45) -49(-45)
Water Vapor Permeance Max. Perms ASTM E 96
(Proc B or W)
2.0 2.0
Resistance to Water Absorption %
change in mass max. after 7 days
immersion @ 170˚F (65˚C)
ASTM D 471 +8.0
-2.0
+8.0
-2.0
Resistance to Heat Aging (Properties
after 170 hrs @ 212˚F (100˚C)
1. Tensile Break Strength
2. Elongation, ultimate min.
ASTM D 882 % 90
75
90
75
Multiaxial Elongation ASTM D 5617 % 100 100
Dimensional Stability ASTM D 1204 % 0.75 0.75
Ozone Resistance
Condition after exposure to 100pphm
ozone in air for 168 hrs @ 140˚F (40˚C)
(Sample under 50% strain)
ASTM D 1149 No Cracks No Cracks
Resistance to outdoor (Ultraviolet)
Weathering , Xenon-Arc, 4000 hr
exposure @ 70˚F (176˚F) Black panel
temperature, visual condition
ASTM G 26 No Cracks No Cracks
Toxicity to Fish ASTM E 729 (96)
Modified
Passes Passes
Shore A Durometer ASTM D 2240 65±10 65±10
This data is provided for informational purposes only. Trump Eco makes no warranties as to the suitability or the fitness for a specific use or merchantability of the products referred to, no guarantee of satisfactory results from reliance upon contained information or recommendations and disclaims all liability from resulting loss or damage. This information is subject to change without notice,

APPLICATIONS

  • Irrigation ponds, canals, reservoirs, &  ditches.
  • Agricultural applications.
  • Liners & covers.
  • Golf courses & decorative ponds.
  • Earthed-in water dam impervious liner layer.
  • Sub zero installations.

Why Choose Us

  • Professional Team

    Over 30 years experience, we are always able to find the best solution for you.

  • Quick Response

    24*7 service.

    You will always get answers in 6 hours.

  • Trust

    We promise to supply products as per sample and your requirement,not cheat any client.

  • One Stop Solution

    From the beginning to end, we take care of every step in your project.

  • Free Sample and High Customization

    Sample will be free for you, and products liner as per the sizes of your roof and pond.

  • Free Value-added Service

    Finding you the solution is the first step, more service (technical support, construction guidance etc) will supply to you soon.





TECHNICAL NOTES

Features

  • Excellent anti-aging performance, service life up to 50 years.

  • high extension rate, high tensile strength, small size changes at heat treatment.
  • Good plant roots penetrability resistance  and can be made waterproofing layer of planting roof.
  • Special modified molecular structure ,effectively  resolving  the current domestic and foreign glue joint problem .
  • Good low temperature flexibility, and good performance of adapting to ambient temperature changes.
  • Convenient application ,  solid joint, no environment pollution.
  • chemical corrosion Resistance, can be used for special occasions.
  • Convenient maintainance, low cost.
  • Convenient for dealing with details.
  • Good Anti-perforated.
