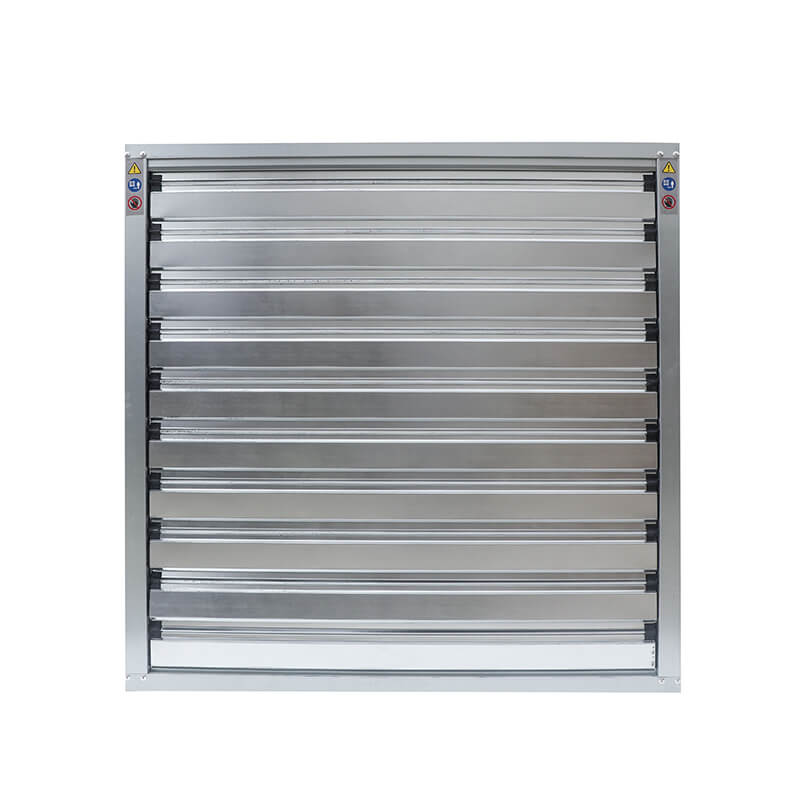

1380mm/50in industrial exhaust fan for workshops, greenhouses, farms

Short Description:

Large Air Volume;Powerful;For the frame,the material is optional: galvanized sheet, aluminum galvanized sheet, 201 stainless steel and 304 stainless steel.

Type:Axial flow exhaust fan
Application: Agricultural greenhouses, workshop and other fields.
Electric Current Type:AC
Frame material:Galvanized sheet
Blade Material:Stainless steel
Mounting:Wall Mounted
Place of Origin:Nantong, China
Certification:CE
Warranty:1 Year
After-sales Service:Online support
Size:1380*1380*380/400mm
Power:1100w
Voltage:3phase 380v/Customized
Frequency: 50hz/ 60hz
motor connection:Belt Drive、Direct Drive Optional


Product Detail

Product Tags

Description

1.Exhaust fans are designed for greater air flow capacity reducing energy consumption by up to 30%, while retaining the current standard wall/mounting housing of the previous 50″ fan which has an enviable reputation for service and performance even under extreme weather conditions with large temperature fluctuations.
2.Hammer Type Exhaust Fan is a vital product in companies or any building. It helps to keep a good environment inside the building in many ways such as cleaning dust, airflow, etc.
3.Fans mainly consists of blade,motor, frame, protective net,support frame,shutters,etc.Motor-driven fan generates airflow.The shutter can be opened automatically after startup and closed automatically when shutdown. In addition, for each fan, we have designed a manual pull switch, which can manually open the shutter for natural ventilation in case of power failure.
4.This product is widely used for ventilation and cooling of livestock farms, flower greenhouses, factories and other places.
5.Compared with air-conditioners with the same cooling performance, industrial exhaust fans will reduce production costs a lot. Fresh air enters continuously, and turbid high-temperature air is discharged continuously. The air cleanliness can reach more than 90%.
6.Reliable quality and the favorable price help our exhaust fans become the ideal products for greenhouse.

Technical Parameter

Model NO. YNH-1380
Dimensions: height * width * thickness(mm) 1380*1380*380/400
Blade Diameter (mm) 1250
Motor speed (rpm) 1400
Air volume  (m³/h ) 44000
Noise decibels(dB) 75
Power(w) 1100
Rated voltage(v) 380

Main Part

Blade

The blade is made by stamping and shaping at one time. It is attractive and durable and the special blade shape design ensures the large air quantity and no deformation.

Motor

The motor is optional:China domestic brand motor and  SIEMENS motor.It is durable, strong power, low noise,IP 55 motor protection grade and F class insulation level.

Belt

SANLUX or THREE brand belts optional, High-quality belts to ensure service life and maintenance-free

Plastic handle

In order to facilitate transport, a concave plastic handle is designed on both sides of fan fuselage, it is greatly improve the transportation efficiency.It has beautiful appearance and it is reasonable for design and easy to damage,cannot hurt hands.

Aluminum wheel

 The aluminum wheel and blade angle are made of aluminum magnesium alloy, which has light weight, good toughness, and are not easy to damage.

Heavy hammer

Adopt high strength nylon heavy hammer or metal lifting hammer to open louver device, the louver open and close flexibly and stably.

Fan bearing

 The bearing adopts the imported Swiss SKF bearing , which has high strength and long service life.

Other Specification Parameter

Model

Blade diameter

(mm)

Blade speed

(r/min))

Motor speed (r/min))

Air volume (m³/h )

Total pressure(Pa)

Noise (dB)

Power

(W)

Rated voltage

(V)

Height

(mm)

Width

(mm)

Thickness

(mm)

YNH-800(29in)

710

660

1400

22000

60

≤60

370

380

800

800

380

YNH-900(30in)

750

630

1400

28000

65

≤65

550

380

900

900

400

YNH-1000(36in)

900

610

1400

30000

70

≤70

550

380

1000

1000

400

YNH-1100(40in)

1000

600

1400

32500

70

≤70

750

380

1100

1100

400

YNH-1220(44in)

1100

460

1400

38000

73

≤70

750

380

1220

1220

400

YNH-1380(50in)

1250

439

1400

44000

56

≤70

1100

380

1380

1380

400

YNH-1530(56in)

1400

325

1400

55800

60

≤70

1500

380

1530

1530

400

Precautions for Use of Exhaust Fan:

1, The operating environment shall be kept clean and tidy, and there shall be no sundries at the air inlet and outlet; Regularly clean the dust and other debris inside and outside the fan to ensure that the surface of the fan is clean and tidy;
2.The fan can only be operated under completely normal conditions, and the power supply facilities must have sufficient capacity and stable voltage. It is strictly forbidden to operate without phase. The power supply line must be a dedicated line, and temporary lines should not be used for long-term power supply;
3.In case of abnormal sound, serious heating of the motor, electrification of the shell, tripping of the switch and failure to start during the operation of the fan, it shall be shut down immediately for inspection.The fan must be turned off during maintenance, and maintenance during fan operation is not allowed. After maintenance, the test run shall be carried out for about five minutes, and the machine shall be started up after confirming that there is no abnormality;
4. Regularly check whether the circuit components are aging, if so, please replace the new components in time;
5. During product maintenance and inspection, please cut off the power for inspection, and do not connect the power for inspection, so as to avoid personal injury and death.
