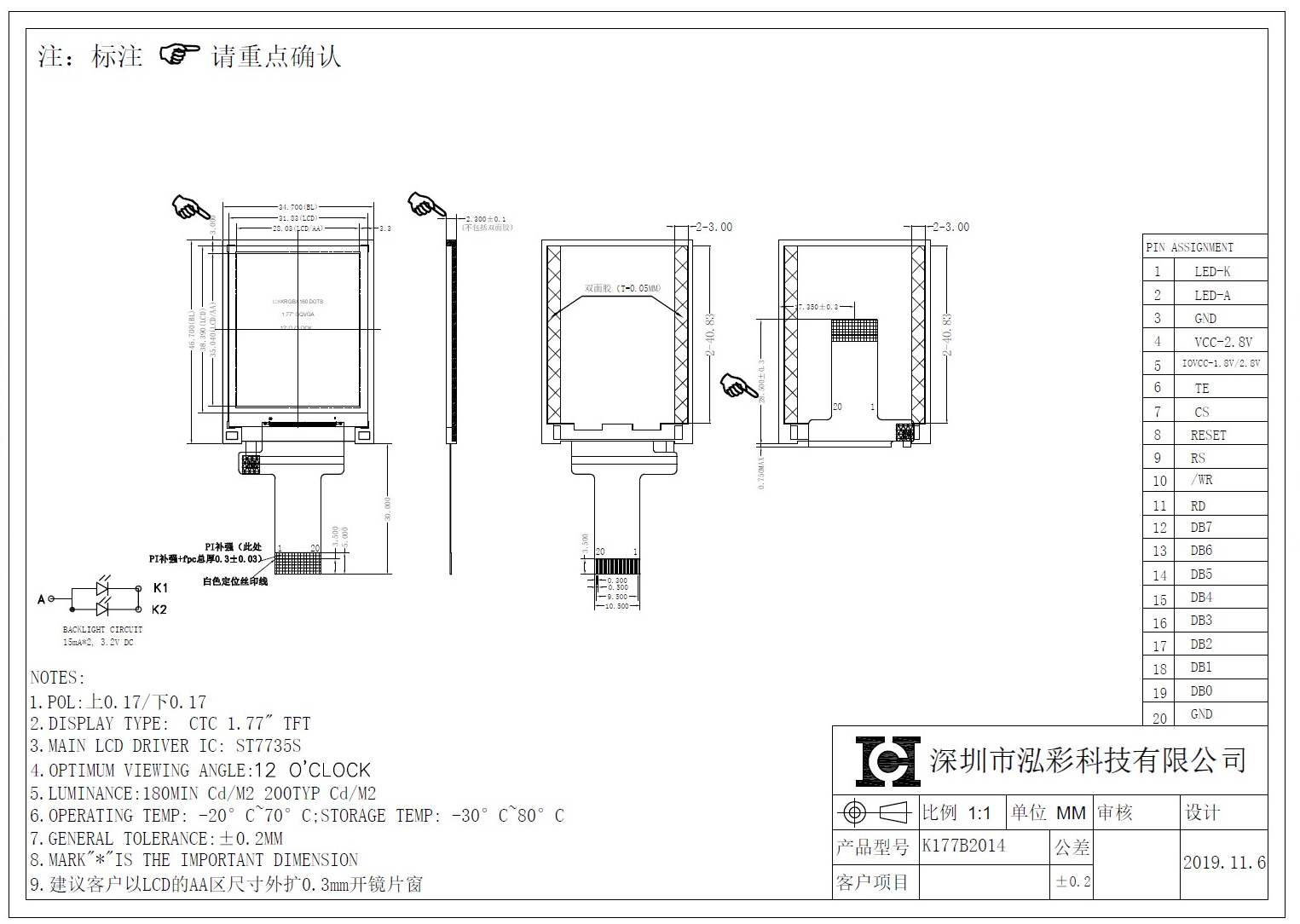

1.77inch tft lcd display
| Item | Contents | Unit |
| Size | 1.77″ tft lcd module | inch |
| LCM Dimension | 34.70（W）* 46.70（H） * 2.30(T) | mm |
| LCD Active Area | 28.03* 35.04 | mm |
| Number OfDots | 128 * RGB * 160 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | 12 0′CLOCK | |
| Driver IC | ST7735S | |
| Interface Type | MCU | |
| Operating Temperature | -20℃~ 70℃ | |
| Storage Temperature | -30℃~ 80℃ | |
| Backlight Type | 2 LEDs | |
| Weight | 350-400 | Cd/m2 |
